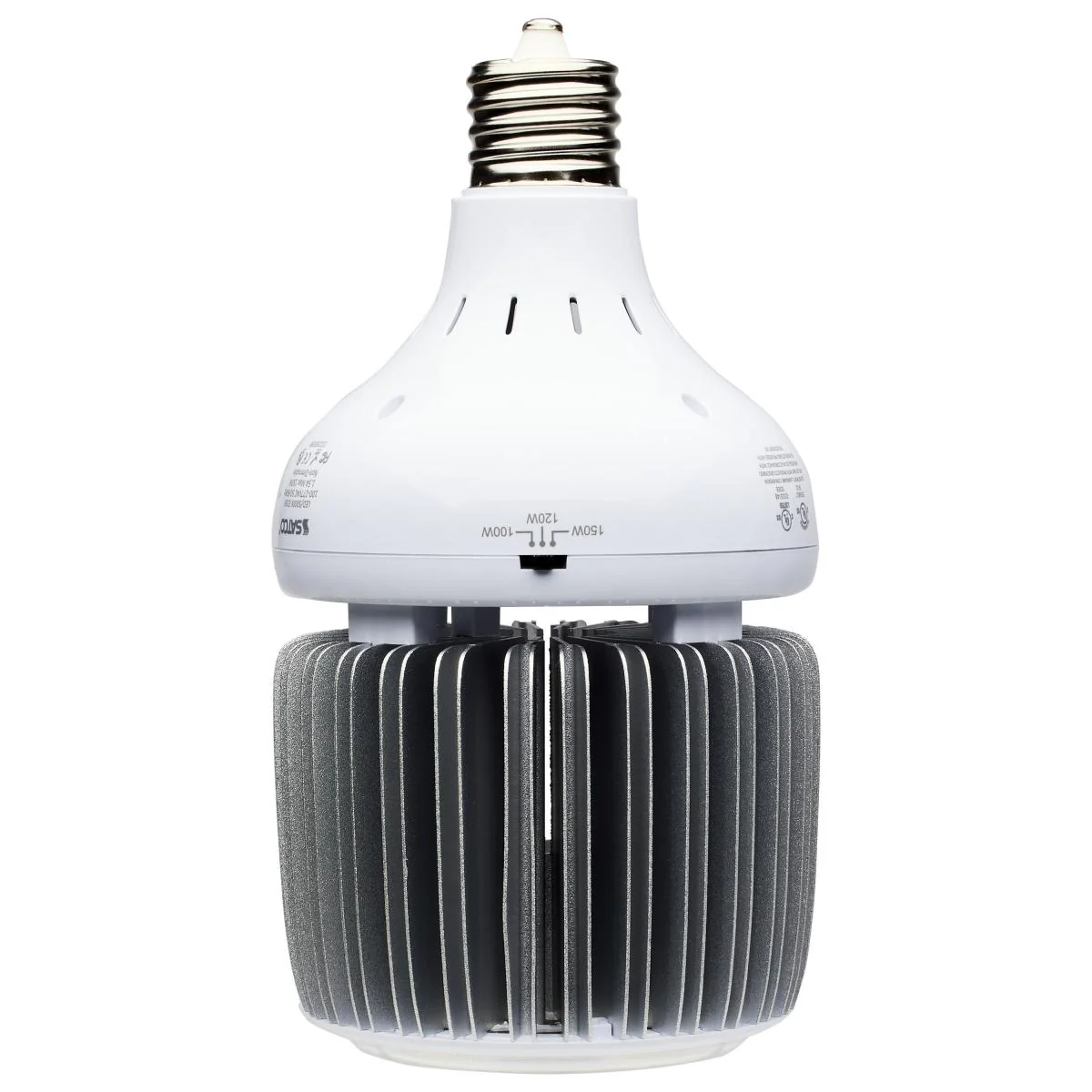

100/120/150 Wattage Selectable; LED; Hi-Bay, Ballast Bypass; 5000K; 100V-277V
100/120/150 Wattage Selectable; LED; Hi-Bay; Type B; Ballast Bypass; Mogul Extended; 5000K; 100V-277V; 400W-600W Metal Halide Replacement
General
| Status | Active |
| Watts | 100W/120W/150W |
| HID Equivalent | 320W/400W/600W |
| Volts | 100V-277V |
| Shape | Hi-Bay |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| CCT (Kelvin) | 5000K |
| Temperature | Natural Light |
| CRI | 80 |
| Lumens | 14000L/16800L/21000L |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Technology | LED |
| Min Compartment Size | Length: 15.75 in. Width: 14.96 in. |
| Ballasting Requirements | Ballast Bypass |
Electrical
| Watts | 100W/120W/150W |
| HID Equivalent | 320W/400W/600W |
| Volts | 100V-277V |
| Ballasting Requirements | Ballast Bypass |
| Operating Frequency | 50/60Hz |
| CCT (Kelvin) | 5000K |
| Temperature | Natural Light |
| CRI | 80 |
| Lumens | 14000L/16800L/21000L |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Surge Protection | Built-in surge protection - 4KV |
| Operating Temperature | -25C (-13F) to +50C (+122F) |
Physical
| MOL | 10.31 |
| MOD | 5.51 |
| Shape | Hi-Bay |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | White |
| Weight (lb.) | 2.92 |
Additional Information
| Min Compartment Size | Length: 15.75 in. Width: 14.96 in. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus - Listed; cULus - Classified |
| Location Rating | Damp |
| Energy Star | No |
| CA T20 / T24 Rationale | Exempt - Base Not Regulated |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | Lawful for sale |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923331176 |
| Each Quantity | 1 |
| Each Length (in.) | 5.91 |
| Each Width (in.) | 5.91 |
| Each Height (in.) | 12.36 |
| Each Weight (lb.) | 3.17 |
