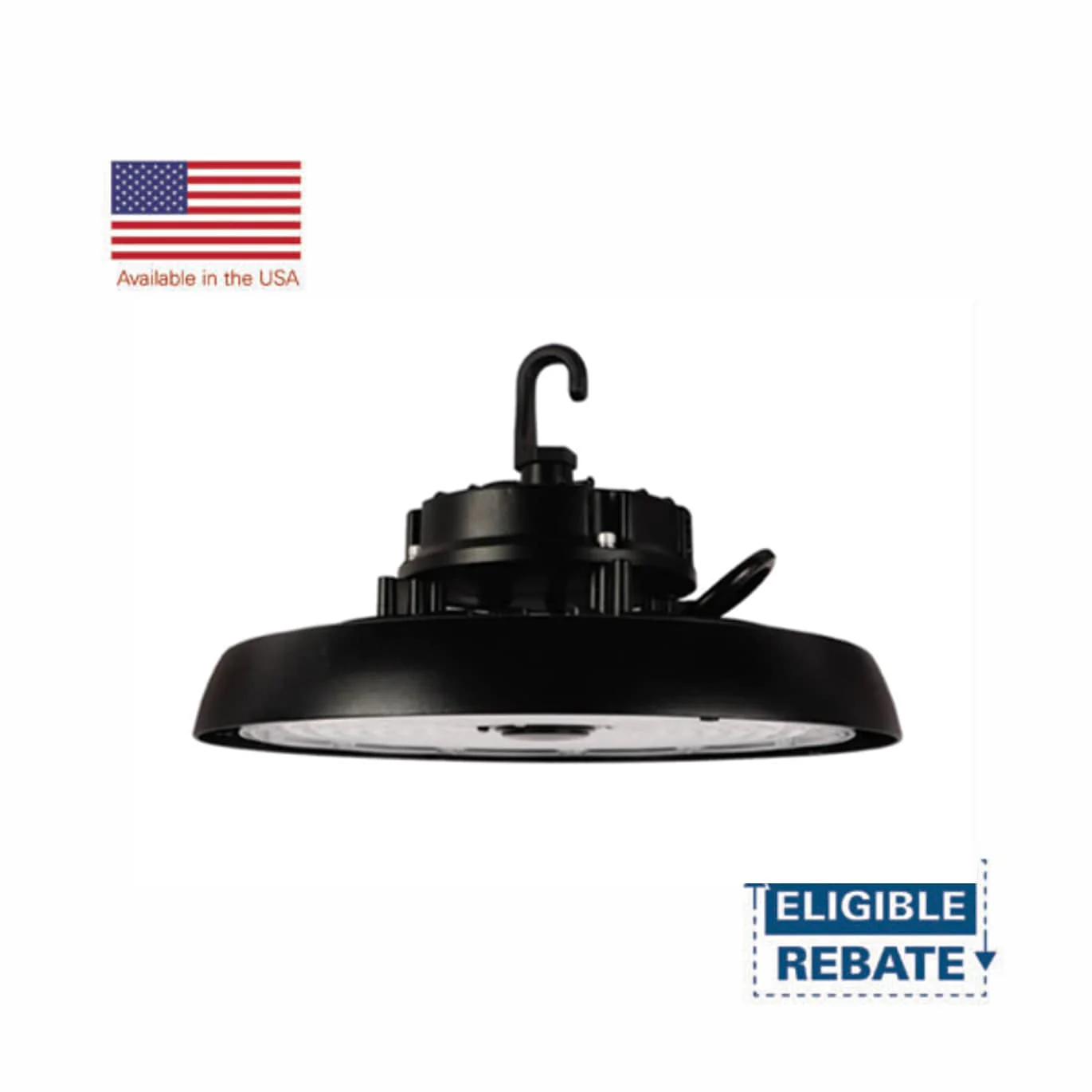

LED UFO HighBay Color Selectable & 150 | 200 | 240 Watt Selectable
LED UFO HighBay Color Selectable & 150 | 200 | 240 Watt Selectable
EarthTronics LED Highbay delivers excellent energy savings then replacing up to a 1000 watt HID fixtures. This UFO high bay fixture has a 12.8”diameter design and produces up to 38400 lumens. It features color selection options of 4000K or 5000K with a high 80+ CRI providing excellent visual acuity for accuracy when working in manufacturing and warehousing applications. This fixture has a unique open center ventilated LED array afford excellent heat dissipation providing high lumen maintenance over its service life. This UFO Highbay is IP65 rated for wet locations and the housing is corrosion resistant die-cast aluminum. This fixture is also ETL Sanitation Listed (conforms to NSF STD.2) for use in food processing and other clean room applications. 0-10V dimming standard and compatible with several controls. Control options include EarthConnect Network lighting control and a full functioning microwave sensor. High quality LED chips provide for excellent lumen maintenance. This UFO High Bay ships with a standard 6′ 18/3 SJT whip, 0-10v dimming wires and mounting hooks.
ORDER CODE:
11888
MODEL NUMBER:
HBU240WSCCTB1S
COLOR SELECTABLE:
4000K or 5000K
LUMEN LEVELS:
24000 lumens - 150 watts
32000 lumens - 200 watts
38400 lumens - 240 watts
- 120/277V
- Simple design
- Feature 2-stage color temperature adjustment, 3-stage brightness adjustment
- Operating at 160 lumens per watt
- Ships with standard 6′ 18/3 SJT whip, 1-10v dimming wires and mounting hooks
- IP65 wet location rated
- Polycarbonate lens
- Corrosion resistant die-cast aluminum housing
- Driver standard with 0-10V dimming (prewired)
- DLC® Premium
Dimensions:
23.5” L x 10.5” W x 2.0” H
Weight: 9.71 LBS
UPC: 840791116890
